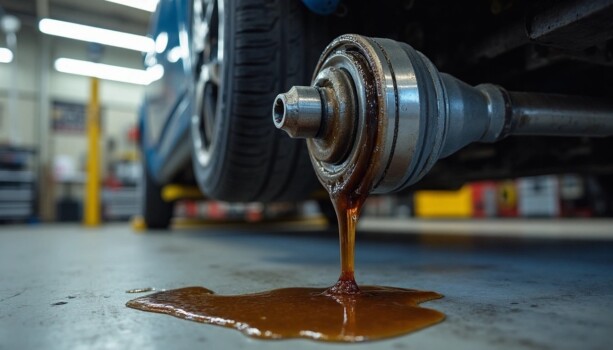

Have you noticed gear oil dripping under your car and wondered if you could fix it yourself?
Mechanics know that gear oil leaks can create serious problems like delayed engagement and overheating. These issues often lead to complete transmission failure. A simple seal replacement costs around $150, but if you wait too long, a new torque converter might cost you $1,000. Our experience as mechanics shows that worn seals, cracked housings, and old gaskets commonly cause gear oil leaks in cars. The good news is that you can fix many gear box oil leaks at home with basic tools and know-how, especially when dealing with a gear oil seal leak.
In this piece, we’ll show you our tested step-by-step process to spot and repair gear oil leaks in your vehicle. On top of that, we’ll teach you quick ways to stop gear oil leaks that will save you money and prevent future issues. Let’s roll up our sleeves and fix that stubborn gear oil leak together!
What Causes a Gear Oil Leak?
Gear oil leaks usually come from several common mechanical problems that show up as equipment ages. You need to know what causes these issues before you can fix them properly.
Worn or damaged seals
Bad seals are the number one reason behind gear oil leaks. These pesky problems cause about 90% of all gearbox oil leakage. Seals naturally get harder as they lose their plasticizer with age. Hot and cold temperature changes make this happen even faster. The seals start to shrink, then get hard, and end up breaking. This makes transmission leaks unavoidable. Heat inside the gearbox turns oil into steam, which creates pressure. This forces oil out through any weak spots in the seals.
Cracked or loose gear housing
A damaged gearbox housing gives oil easy paths to leak out. Even tiny cracks just 1-2mm wide can let out lots of oil. These cracks usually come from damage, factory defects, or rust. Loose or missing bolts around the housing also let oil seep through gaps. Mechanics often find that screws on mating plates aren’t tight enough – sometimes they’re loose by up to a quarter turn.
Overfilled or contaminated gear oil
Too much fluid puts extra pressure on transmission seals, which pushes oil through seals that would normally work fine. This happens because pressure inside gets higher than the air pressure outside. Overfilling starts a chain reaction of problems throughout the transmission system. It can even damage electrical parts and sensors.
Water getting into the system is also a big problem. Humid environments let moisture slip in during the “inhalation process” as the gearbox breathes. Steam leaks nearby or problems with water cooling systems can add contaminants that mess up the whole system.
Old or degraded gaskets
Gaskets are vital to stop fluid leaks where gearbox parts meet. These rubber or silicone seals break down from constant heat, pressure, and movement. Gaskets that weren’t put in right during past fixes or damaged ones can create spots for leaks between housing sections. Oil can escape if a gasket isn’t lined up right or isn’t compressed fully along oil passages.
How to Fix a Gear Oil Leak Step-by-Step
Fixing a gear oil leak needs careful troubleshooting and attention to detail. You can handle this repair project well if you have the right tools and know what to do.
1. Identify the source of the leak
Start with a detailed inspection to find exactly where the leak is coming from. Clean the suspected areas with a degreaser since oil tends to flow down with gravity and move backward from airflow while driving. UV dye and pressure tests will help you spot if the leak comes from seals, housing, or other parts. Check shaft seals carefully as they let contaminants in when damaged. Flashlights, mirrors, or your phone camera can help you see those hard-to-reach spots better.
2. Drain the old gear oil
Put your vehicle on jack stands and chock the wheels for safety. Set a collection pan under the gearbox and find both drain and filler plugs. The filler plug should come off first to prevent vacuum lock from slowing drainage. Take out the drain plug next and let all the oil flow out. Look at the drained fluid closely – if it looks milky off-white, water has gotten in. Make sure to clean the drain plug well, especially its magnetic end that catches metal shavings.
3. Remove and inspect the faulty part
After draining, take off the parts needed to reach the damaged area. If you’re dealing with seals, remember how they were positioned before taking them out. Look for cracks in the housing, check if gaskets have worn out, and look at all sealing surfaces. Clean every part with a good degreaser and remove old gasket material without scratching the metal surfaces. Scratches will stop proper sealing later.
4. Replace seals or gaskets as needed
Here’s what you need to do:
- Put a light coat of transmission fluid on the new seal’s outer surface
- Place the seal straight in its housing
- Tap it evenly with a seal driver or right-sized socket until it sits fully
- Add a bit of transmission fluid to lubricate inner and outer seal lips Always pick high-quality OEM gaskets and seals that fit right and last long.
5. Refill with fresh gear oil
Put the drain plug back in, turning it by hand several times to avoid cross-threading. Use a torque wrench to tighten it to the manufacturer’s specs. Fill the gearbox with the recommended fluid by putting the oil pump tube into the filler hole. Keep going until oil starts coming back out of the filler. This bottom-up filling keeps air bubbles from forming in the gearbox.
6. Test for leaks after repair
Start the engine and let it reach working temperature to test for leaks. Check all fixed areas for any signs of leaking. Take it for a test drive and check fluid levels again to make sure no oil was lost. Keep an eye on the repair area for a few days to confirm the leak is fixed for good.
Common Mistakes to Avoid During Repair
Even skilled mechanics make mistakes that worsen gear oil leak repairs. These mistakes don’t just compromise your repair work but create expensive problems later.
Using the wrong type of gear oil
Your transmission can suffer severe damage if you select the wrong gear oil. Different manufacturers specify various transmission fluids based on transmission type and operating conditions. Catastrophic transmission failure might occur if you mix incompatible fluids. You’ll notice slipping gears or clutches quickly, and your transmission might need complete replacement in the long run. The viscosity grade creates really serious problems – low viscosity doesn’t lubricate enough and causes internal engine wear. High viscosity starves oil flow and increases drag. Don’t choose oil based on price alone – check your vehicle’s specific requirements first.
Over-tightening bolts or fittings
Over-torquing fasteners creates many more problems during gear oil leak repairs. Stripped threads, broken bolts, and deformed materials happen with excessive torque. These issues cause joint failure and fluid leaks. Your gearbox’s over- tightened bolts create stress points that crack or fail from fatigue. More importantly, gear housings with improperly tightened bolts stress components in cycles and cause metal fatigue cracks. Follow manufacturer torque specs instead of tightening “just a little more” to be safe.
Skipping the cleaning process
Oil collects dust, dirt and other contaminants naturally. Clean repairs are the foundations of good maintenance. Contaminants enter the system if you skip proper cleaning. This speeds up wear through abrasion, adhesion, and corrosion – processes behind 70% of surface degradation. Equipment maintainers must provide clean oil. Clean all mating surfaces carefully to remove old gasket material without scratching the metal.
Ignoring small leaks
Small leaks always become major problems. A harmless-looking issue can quickly cause severe internal transmission damage and total failure if you don’t deal with it. Simple gasket replacement or tightening fittings works if caught early. Waiting too long costs thousands in repairs. Florida mechanics point out that vehicles don’t deal very well with seal and gasket failures especially when you have extreme heat and humidity. Fix even minor leaks quickly to avoid breakdowns and unnecessary expenses.
Gear Oil Leak Repair Cost and Prevention Tips
You can make better decisions about repairs and maintenance by understanding what gear oil leaks mean for your wallet. My experience as a mechanic shows that knowing the expected costs helps you avoid surprises.
Average cost of gear oil leak repair
The cost to fix a gear oil leak changes substantially based on how bad the leak is and where it’s located. A minor repair like replacing seals costs between AED 275 to AED 550. Major transmission component repairs are a big deal as it means that they can reach AED 3,671.
Most gear oil leak repairs fall within these price ranges: Simple seal replacement: AED 550-917
Gasket replacement: AED 881-1,835
Torque converter issues: Up to AED 3,671
Labor makes up much of these costs and often costs more than the parts themselves. The diagnosis alone might set you back AED 367 before any actual repairs start.
How to prevent future leaks
Preventing gear oil leaks is without doubt cheaper than fixing them. Regular inspections help maintain proper oil levels and quality. The best practice is to check your transmission fluid during oil changes and replace it every 30,000-50,000 miles.
Vehicles used often for hauling need fluid replacement as early as 15,000 miles. Regular visual checks of your gearbox casing and selector seal can spot problems before they become serious.
The transmission system’s gaskets need regular checks too. These parts break down over time, especially in hot, humid environments.
When to consult a mechanic
DIY repairs can save money, but some situations need professional help. A mechanic should look at your vehicle if:
- The leak continues after you’ve tried fixing it
- Metal shavings appear in the drained fluid
- Your gear housing shows cracks or major damage
- The transmission behaves strangely along with the leak
Internal damage might need a full picture from a professional to prevent more problems. Note that even small leaks can lead to thousands in repair costs and might cause complete transmission failure.
A qualified technician’s inspection often reveals why it happens that DIY fixes miss, which protects both your peace of mind and your vehicle’s transmission system financially.
Conclusion
Your vehicle’s transmission health depends on fixing gear oil leaks right away to avoid repairs that can get pricey later. This piece dives into why these leaks happen – from worn-out seals to cracked housings and old gaskets. You’ll also find a complete repair guide that helps you fix many of these problems yourself when you have the right tools and know- how.
Quick action on leaks saves you money and keeps your transmission from failing completely. A simple seal replacement costs about AED 550 now, nowhere near the AED 3,671 you might pay to replace a torque converter later. Regular checks and maintenance are your best defense against future leaks.
It’s worth mentioning that prevention works better than repairs. You should check fluid levels during oil changes, replace transmission fluid when recommended, and look for early wear signs to protect your investment. All the same, if you spot metal shavings in your fluid or notice your transmission acting strange, a professional mechanic’s help makes the most sense.
This guide equips you to make smart choices about your vehicle’s maintenance. Gear oil leaks might look scary at first, but they follow clear patterns and respond well to step-by-step fixes. This knowledge helps you keep your vehicle’s transmission running smoothly for years.
FAQs
Q1. How can I identify a gear oil leak in my vehicle?
Look for signs such as low fluid levels on the dipstick, gear slippage during acceleration, illuminated dashboard warning lights, or dark spots (usually pink or red) on your driveway. These indicators suggest a potential gear oil leak that requires attention.
Q2. What are the main causes of gear oil leaks?
The primary causes include worn or damaged seals, cracked or loose gear housing, overfilled or contaminated gear oil, and old or degraded gaskets. These issues often develop over time due to normal wear and tear or improper maintenance.
Q3. Can I fix a gear oil leak myself, or should I consult a mechanic?
Many gear oil leaks can be fixed at home with the right tools and knowledge. However, if the leak persists after attempted repairs, you notice metal shavings in the drained fluid, or your vehicle exhibits unusual transmission behavior, it’s best to consult a professional mechanic.
Q4. How much does it typically cost to repair a gear oil leak?
The cost varies depending on the severity and location of the leak. Simple seal replacements can range from AED 550 to 917, while more complex repairs involving major transmission components can cost up to AED 3,671. Labor costs often make up a significant portion of the total expense.
Q5. How can I prevent gear oil leaks in my vehicle?
Regular maintenance is key to preventing gear oil leaks. This includes maintaining proper oil levels, replacing transmission fluid at recommended intervals (typically every 30,000- 50,000 miles), and conducting regular visual inspections of your gearbox casing and selector seal. Also, address any small leaks promptly to prevent them from becoming major issues.
